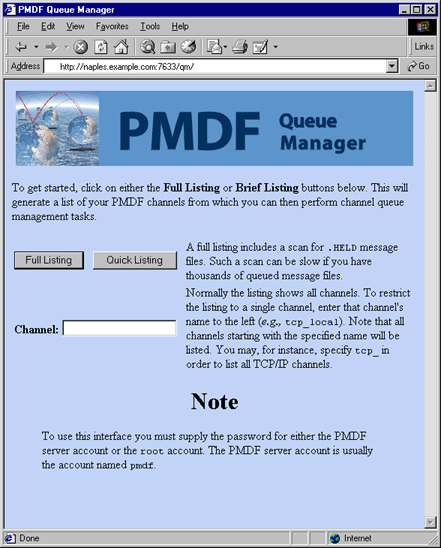

This section shows examples of the web-based QM utility's web page displays on a sample system. Figure 32-12 shows the initial page displayed at

http://hostname:7633/qm/

From this initial page, you may request either a full or quick listing of message files currently in PMDF channel queues. The requested listing will not be displayed unless and until you have authenticated yourself as a PMDF manager (that is, as SYSTEM or PMDF on OpenVMS, or as root or pmdf on UNIX, or as Administrator on NT).

Figure 32-12 Web-based QM Home Page

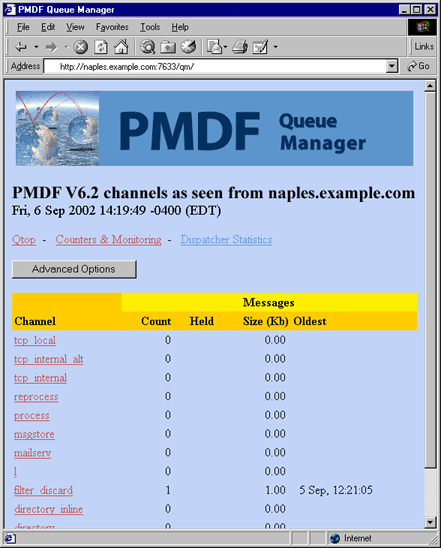

Figure 32-13 shows a sample of a quick listing, as displayed by selecting the "Quick Listing" button from Figure 32-12.

Figure 32-13 Web-based QM Quick Listing Page

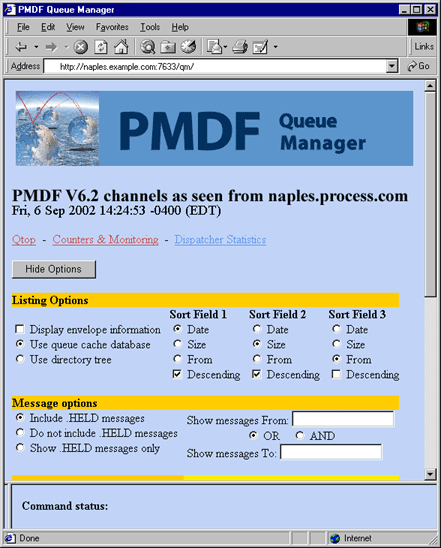

Figure 32-14 shows a sample of an advanced options page, as displayed by selecting the "Advanced Options" button from Figure 32-13. Scrolling further down such a page past the point visible in this figure, you would be presented with buttons for each channel for displaying the messages queued for that channel, for submitting a processing job for that channel, or for stopping that channel from running any new processing jobs.

Figure 32-14 Web-based QM Advanced Options Page

Figure 32-15 shows a sample of the l (lowercase L) channel display page, as displayed by clicking on the l channel from the quick listing page, Figure 32-13, or by selecting the List button (the l channel from the advanced options page.

Figure 32-15 Web-based QM l Channel Page

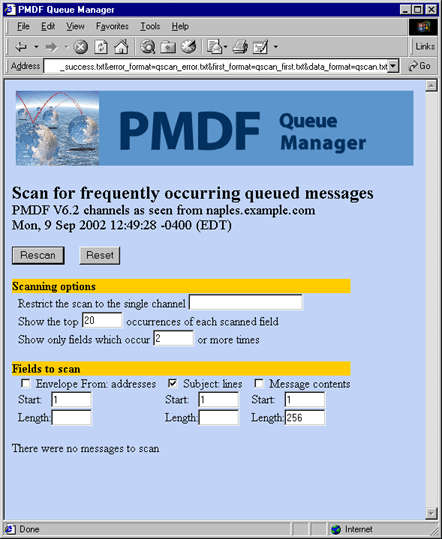

Figure 32-16 shows a sample of the Qtop page, as displayed by clicking on "Qtop" from Figure 32-13 or Figure 32-14. Qtop may be used to see what strings or addresses are frequently appearing in messages currently in the PMDF queue area. This can be particularly useful for spotting flurries of unsolicited bulk e-mail (spam) or chain letters. Figure 32-16 shows an example where there are numerous messages in the PMDF queue area whose Subject: header field is "Relay test".

Figure 32-16 Web-based QM Qtop Page

The web-based QM utility also has links on the listing and advanced options pages to the Dispatcher statistics display, such as the sample display shown in Figure 11-5.
